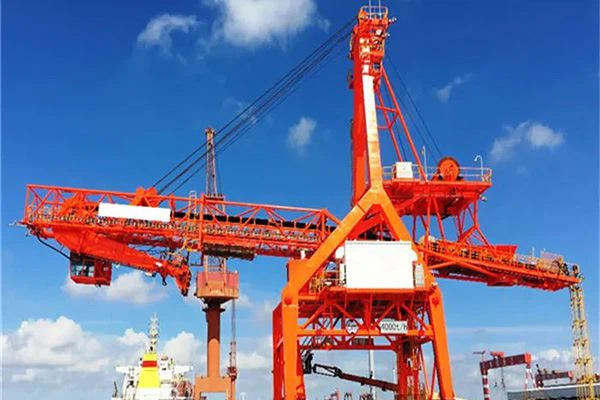

Screw Type Ship Unloader is mainly composed of gantry, turntable, horizontal screw, vertical screw and feeder. It has the advantages of advanced technology, reliable use, high stability and high production efficiency.
Description
Introduction
Screw Type Ship Unloader is mainly composed of gantry, turntable, horizontal screw, vertical screw and feeder. It has the advantages of advanced technology, reliable use, high stability and high production efficiency. It can be carried out in a closed state during the operation process without dust pollution. Its appearance and weight are smaller than other continuous ship unloaders. Generally, it is mainly used for unloading coal, cement, bulk grain, fertilizer, potash and other bulk materials.
Technical Data
| Capacity rating | 1000t/h | ||
| Peak performance | 1200t/h | ||
| Range of ship unloader walking area | ±100m | ||
| Wharf belt machine bandwidth | 1400mm | ||
| Quay belt speed | 2m/s | ||
| Designing wind speed | 25m/s | ||
| Power | 6KV/50HZ | ||
| Installed gross capacity | 960KW | ||
| The cart walking mechanism | track gauge | 16m | |
| speed of travel | 0-20m/min | ||
| The front rail is a distance away from the dock | 3m | ||
| track | QU100 | ||
| Maximum wheel pressure for work | <250KN | ||
| Rotary mechanism | Two-way rotation Angle | ≥110° | |
| spin velocity | 0~0.2rpm | ||
| Horizontal arm frame | Horizontal arm frame length | 25.25m | |
| Angangle at work | +20° | ||
| Work now down the Angle | -20° | ||
| Off-working elevation angle | +30° | ||
| Non-work now down the Angle | -20° | ||
| Horizontal arm end swing velocity | 8m/min | ||
Upright arm | Vertical arm length | ||
| Vertical arm edge and horizontal arm plumline | To the outside | +30° | |
| Toward | -30° | ||
| Vertical arm end swing speed | 8m/min | ||
| Carrying capacity of crane | 20t/30m | ||
Product advantages
1. High efficiency of ship unloading
2. Strong adaptability to cargo and ship type
3. Little environmental pollution
4. Simple structure and light weight
Our advantages
a. Extensive production experience: We are specialized in Stacker reclaimer, Ship loader and Ship unloader with an experience of 8 years.
b. Complete production facilities: Owning large gantry milling machine, large floor boring machine, laser cutting equipment, paint booth, rounding machine, bending machine, etc. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
c. High quality raw material: We mainly choose raw material from big steel factory, such as NANJING STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
d. Strict Physical/Chemical testing procedures: Meeting the requirements of the product design and process, providing reliable testing data.
