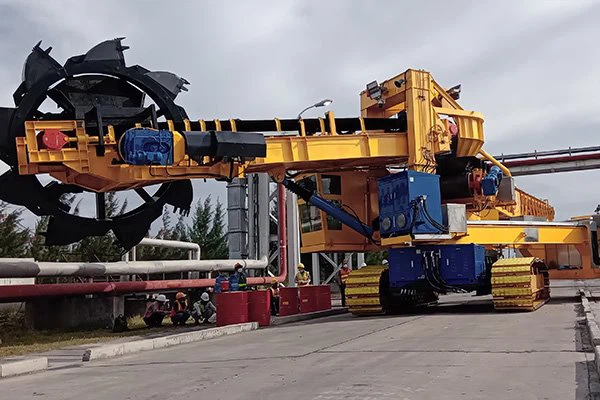

The crawler-type mobile stacker-reclaimer is a piece of equipment that can walk freely in harsh field conditions. The reclaiming arm and stacking arm can rotate independently of each other. The materials handled by the product are bulk materials such as coal, ore, limestone, and grain, which are used for transshipment in power plants, storage yards, mines and bulk cargo terminals.
Description
Introduction
The crawler-type mobile stacker-reclaimer is a piece of equipment that can walk freely in harsh field conditions. The reclaiming arm and stacking arm can rotate independently of each other. The materials handled by the product are bulk materials such as coal, ore, limestone, and grain, which are used for transshipment in power plants, storage yards, mines and bulk cargo terminals.
Technical Data
| Avergare capacity | 600t/h(tolerance ±5%) | Design taperature | To 50℃ |
| Desigi capacity | 800t/h(tolerance ±5%) | Moisture | 52 to 95% |
| Material | Coal 0.8-1.18t/m3 | Wind speed in operation | 20m/s |
| The width of conveyor | 1200m | The max rod grade | 4° （7%） |
| The speed of conveyor | 1.2m/s | The slewing of bucket boom | 360° |
| Travelling Speed | 6-10m/min | The slewing of discharge boom | ±90° |
| Maximm ground pressure | ≤12t/m2 | Diesel generator | 180kw(400v,50hz) |
| Total weight | ~120t | ||
Detail
Product name: Crawler Type Mobile Stacker Reclaimer
Application:The equipment can transport the materials from the storage yard to the designated ground belt conveyor, receiving hopper, truck Train, etc.
Original: Jiangsu, China
Price: Negotiable
Voltage: 400V 50Hz, the voltage can be as local demand
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Our advantage
1. We are an innovation driven company. We have 15 patents, and 3-5 patents are authorized every year
2. The advanced technology can make the equipment lighter and lower energy consumption at the early stage of design
3. We adopt advanced project management methods to ensure the perfect implementation of each customer order
4. Our professional and timely response performed well in the initial stage of customer bidding
Our factory

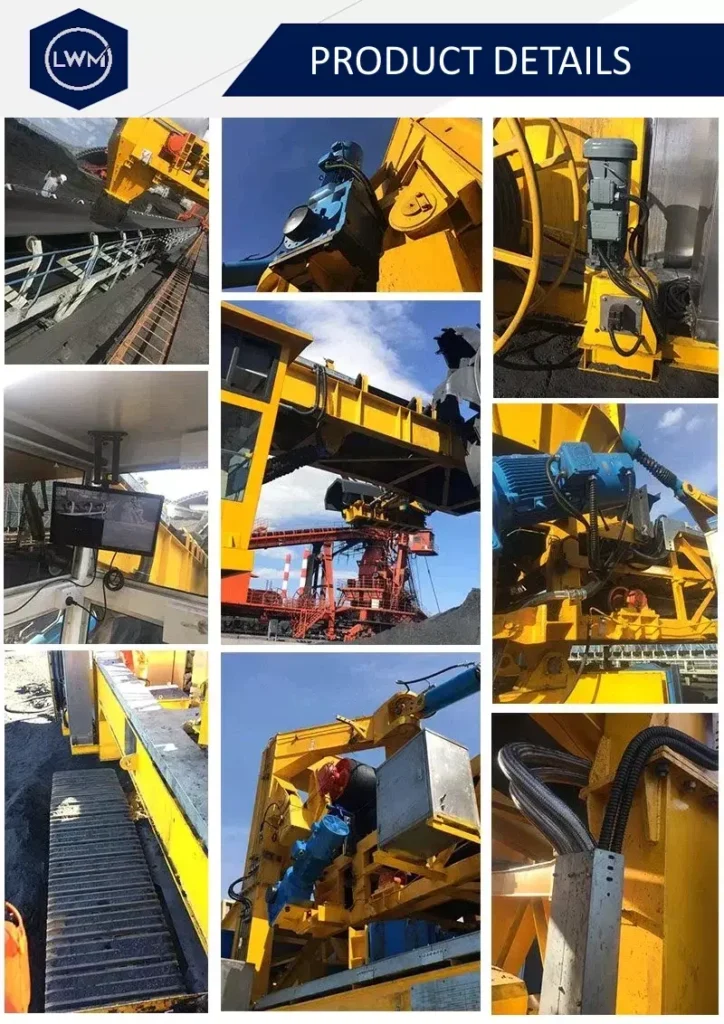

Our Equipment
Our Team
FAQ
1. Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have builded up our company since 2014.
2. Q:Which level of quality are your products?
A:We have got GNAS certificate so far.
3. Q:What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
4. Q:Can the machine be customized as our need, such as put on our logo?
A:Surely our machine can be customized as your need, Put on your logo is also available.
