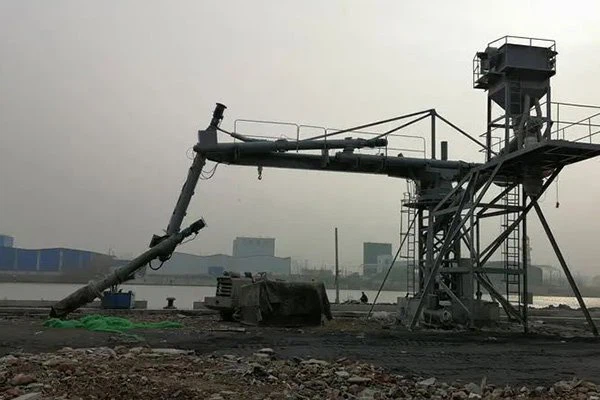

After many years of practical use, the fixed screw ship unloader is stable, reliable, environmentally friendly, stable in structure, large in capacity, low in energy consumption, has an intelligent remote operating system, and is suitable for various industries, such as building materials, chemicals, electric power, metallurgy, coal, Food and other industries.
Description
Introduction
After many years of practical use, the fixed screw ship unloader is stable, reliable, environmentally friendly, stable in structure, large in capacity, low in energy consumption, has an intelligent remote operating system, and is suitable for various industries, such as building materials, chemicals, electric power, metallurgy, coal, Food and other industries.
Technical Data
| Capacity rating | 1000t/h | ||
| Peak performance | 1200t/h | ||
| Range of ship unloader walking area | ±100m | ||
| Wharf belt machine bandwidth | 1400mm | ||
| Quay belt speed | 2m/s | ||
| Designing wind speed | 25m/s | ||
| Power | 6KV/50HZ | ||
| Installed gross capacity | 960KW | ||
| The cart walking mechanism | track gauge | 16m | |
| speed of travel | 0-20m/min | ||
| The front rail is a distance away from the dock | 3m | ||
| track | QU100 | ||
| Maximum wheel pressure for work | <250KN | ||
| Rotary mechanism | Two-way rotation Angle | ≥110° | |
| spin velocity | 0~0.2rpm | ||
| Horizontal arm frame | Horizontal arm frame length | 25.25m | |
| Angangle at work | +20° | ||
| Work now down the Angle | -20° | ||
| Off-working elevation angle | +30° | ||
| Non-work now down the Angle | -20° | ||
| Horizontal arm end swing velocity | 8m/min | ||
Upright arm | Vertical arm length | ||
| Vertical arm edge and horizontal arm plumline | To the outside | +30° | |
| Toward | -30° | ||
| Vertical arm end swing speed | 8m/min | ||
| Carrying capacity of crane | 20t/30m | ||
Our service and advantage
1. We have many experience on OEM work.
2. We can customize special modle as customer demand.
3. Technical service for assembling.
4. Variety types for selection, prompt deliver.
5. Well-equipped with extensive sales network.
6. Advanced Production equipment and production technique.
7. Competitive Price (Factory direct price) with our good service.
