Fixed Ship Loader

Categories

Latest Products

Longwa Machinery Equipment Manufacturing Co., Ltd. The main products are intelligent mobile material handling equipment, which are widely used in coastal and riverside ports and terminals, especially the continuous stacking of coal, ore, and chemical raw materials.

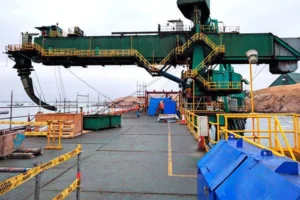

Fixed Bulk Ship Loader

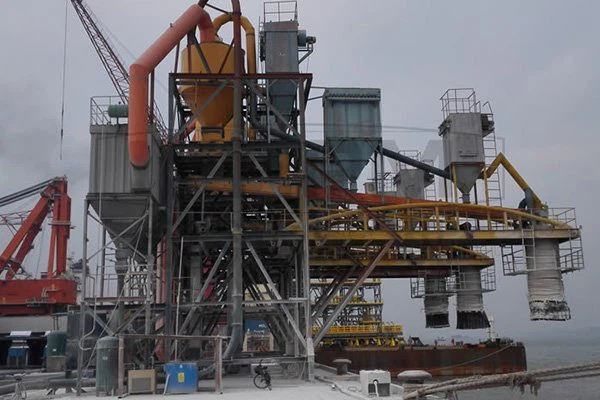

Fixed Swing Ship Loader

Why Choose Us?

Our Team

They have rich professional knowledge and technical experience, and are market-oriented. Customer requirements, continuous research and development.

Production Market

Domestic and Vietnam, Indonesia, Malaysia, the United States.

Core strength

Our company implements life-long after-sales technical support services for all sold products (completed projects), and our company will solve any problems during the warranty period for customers in time.

Specifications

Equipment model			Unit	CSL 500	CSL 800	CSL 1200	CSL 1800	CSL 2600	CSL 3200	CSL 4000	CSL 4500
Production capacity		t/h		500	800	1200	1800	2600	3200	4000	4500
Material characteristics:	Applicable materials			Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials.
	Density		t/m³	0.5-2.5
	Particle size		mm	0-300
Traveling speed	Work		m/min	10
	Dispatching vehicle			30
Cantilever crane pitching	Work		°	0～+16
	Non-working		°	70
	Speed		r/min	2/4/6/8
Telescopic speed of cantilever crane			r/min	6(cantilever crane angle0～+16)/3(cantilever crane angle0～+35)
Chute tube speed	Rotation		m/min	0～6
	Stretch			1
Conveyer	Belt speed		m/s	1.25-4
	Bandwidth		mm	1.25-4
Rail gauge			m	650-2400
Maximum wheel load			KN	250-350
Recommended steel track				P50-Q80
Power supply mode				Cable drum/safety sliding contact line
Contact mode				Cable drum/safety sliding contact line/wireless
Control mode				PLC program control, manual and single action

Advantage of Fixed Ship Loader

Assembly in concrete or metal tower.
Minimum arrest time for basement changes – or hanging bridge positioning is done while another one is under operation.
It does not require concrete reinforcement with beams and rails for transportation – the cost with foundations is lower.
It does not require mobile tripper and open tunnel or transporter with conveyor coverage.
It require less power (KW) to operate.
Modular – from 1 to 4 towers, which may be implemented in several stages, reducing or initial investment.
Fewer moving parts – lower cost of operation and maintenance.

Types of ship loading conveyors and their differences

Fixed ship loading conveyor: This type of conveyor is used in large ports that are always busy loading materials around the clock. In such cases, due to the absence of interruptions in loading operations, the conveyor is used continuously in one place. In such cases, there is no need for it to be mobile, and due to its high capacity, in order to increase work efficiency, this system is installed on a fixed base. The only difference between this system and other types is that it is fixed and non-portable.

Mobile or mobile ship loading conveyor: This type of ship loading conveyors are usually used in cases of need due to their low capacity. So these systems do not have a fixed use and these conveyors are used in different parts of the port. For these conveyors to be mobile, they use trolley wheels under the chassis of this system. The difference of this type of system is that it is mobile.

Telescopic ship loading conveyor: The structure of this category of ship loading conveyor is designed in a way that has the ability to increase its length. This means that the length of the chassis increases gradually when loading. After each stage of the depot, the length of the chassis is gradually reduced. The difference between these systems is the ability to increase the length of the chassis, and they can be produced as fixed telescopic or mobile telescopic.

Additional Information

Payment Terms	L/C, T/T, D/P
Certification	ISO, DL, JB
Transport Package	Wooden drum, Iron wooden drum, Iron drum or custom made
Capacity(tph)	600-1000 t/h
Applicable Site	Wharf
Applicable material	Packaged grain& fertilizer

Our Factory

The company has a 15,000m2 standard heavy-duty workshop, which is fully equipped with heavy-duty lathes, boring machines, drilling machines, etc. necessary for heavy-duty machining; in addition, it is also equipped with an independent sand-washing and paint workshop; in order to ensure that the products meet the high-quality requirements of European and American customers, the company has established an independent physical and chemical.

Certificate

FAQ

How often should I inspect conveyor systems?

You should inspect certain basic components at the beginning and end of a shift. Walk around the equipment and look for anything that might be amiss, listen for funny noises, and look at the condition of the components of the basic parts that are running all the time.

Where in a conveyor can I achieve energy efficiencies with a retrofit?

Replacing an older motor with a newer, energy-efficient model is the best way to reduce energy usage. You should also be sure to clean the oil and gear lube. Doing so will make it run more energy-efficiently. You can increase a magnetic conveyor’s pulling power by upgrading the magnets.

How do I know when to rebuild or when to replace?

Each company has its own threshold as to when to replace a conveyor system, and it’s primarily based on cost. For some, if the cost to repair is 60 percent of a replacement, that is the threshold. Sometimes the threshold is as high as 70 percent of the cost of a new one.
Other times it’s a lead-time issue. A conveyor that can be repaired in two weeks may be more attractive than a new one that takes six weeks for delivery. Sometimes the decision is based on whether the cost can be taken out of a repair budget or a capital equipment budget.

What Kind of Conveyor Do I Need?

The type of conveyor required depends on several factors, including product type, dimensions, weights, location, and budget. By discussing these factors with our customers, we can provide the best recommendation based on the facts. It’s important to us that the final solution is a practical step forward in achieving the typical advantages that conveyors offer.

Do You Provide Installation?

Not all conveyors require installation. Some of our most effective systems can be simple scenarios, such as gravity roller conveyors. In these instances, we supply conveyors in flat-packed kits with fixings for customer installation.
Many of our belt conveyors can also be sent in similar kit forms. For example, conveyors used for end-of-line processes can be despatched fully built with electrical controls pre-fitted.
For integrated systems where groups of conveyors work together, we can advise on the installation process. We are able to organise our own contractors for mechanical installation and can arrange transport, hire machinery, and specialist contractors for specific tasks such as electrical automation and integration of warehouse management systems.

Can Conveyors Be Customised?

Yes, we offer customised conveyor solutions tailored to your specific needs. Whether you require a particular size, material, or special features, our team will work with you to design and build a conveyor system that meets your exact requirements.
