Mobile Reclaim Hopper is a new type of stacker developed by our company, which aims at the disadvantages of “high labor cost, high energy consumption, low efficiency and high pollution” existing in the traditional track foundation and belt conveyor system used in the port terminal.
Description
Introduction

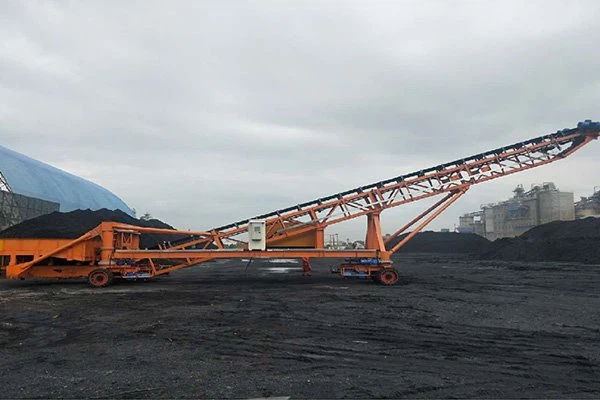

Mobile Reclaim Hopper is a new type of stacker developed by our company, which aims at the disadvantages of “high labor cost, high energy consumption, low efficiency and high pollution” existing in the traditional track foundation and belt conveyor system used in the port terminal. It has the characteristics of “intelligence, high efficiency, energy saving and environmental protection”, which can effectively improve the stacking efficiency and stacking height of the terminal, reduce energy consumption, liberate labor force, and help the port terminal move towards operation automation The development of fully automatic wharf with unmanned site and green energy.
Technical Data
| Capacity rating | 800t/h | |
| Materiel | Coal0.8-1t/m³ | |
| Maximum pile height | 12m | |
| Maximum wind speed for work | 20m/s | |
| Non-working maximum wind speed | 50m/s | |
| Pattern belt machine | tape width | 1000mm |
| tape speed | 2.5m/s | |
| power | 45x2kW | |
| The cart walk | speed of travel | 0~20m/min |
| wheel diameter | 930mm | |
| power | 7.5x4kW | |
| Power | 160KW/400V/50HZ | |
| Total installed capacity | ~160KW | |
Product advantages
The equipment needs to be equipped with two loaders for feeding. During operation, the two loaders will put coal materials into the receiving hopper at the tail of the equipment by alternating feeding, and then they will be transported by belt conveyor to the front yard for stacking.
After stacking materials in one place, the equipment can be moved to the next stacking point through the mobile mechanism for repeated coal stacking.
The power supply mode of the equipment is to use diesel generator set to supply power to the equipment.
The equipment can be operated by local panel or remote control, with wide working range and simple operation.
Company advantage
1. We adopt advanced project management methods to ensure the perfect implementation of each customer order
2. We have own test chart, all of our products have been rigorously tested in the factory.
3. Our company uses the most advanced equipment to make the best quality products.
4. We offer OEM custom service, produce and process products according to your drawings and requirement.
